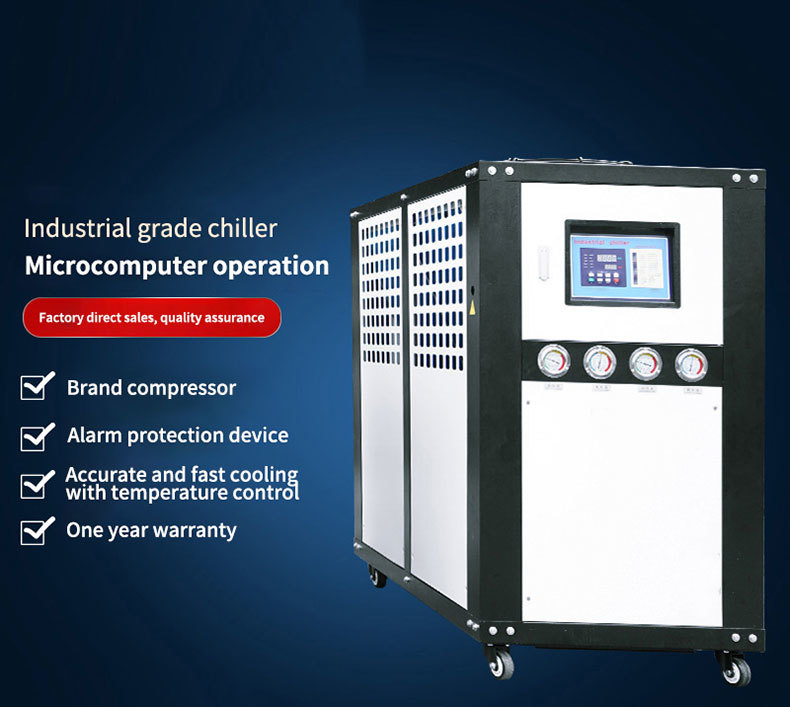

Chiller（injection auxiliary,industrial air cooled and water cooled）
Pinno
Category:
Chiller Series
Summary:The company operates a complete range of products, including granulators, extruders, pulverizers, mills, chillers, automatic feeding machines...
Details
Performance parameters
| Model | 3HP | 5HP | 6HP | 8HP | 10HP | 12HP | 15HP | 20HP | 25HP | 30HP | 40HP | |
| Power supply | 380v/50hz | |||||||||||
|
Cooling capacity |
Kcal /hr |
7188 | 11266 | 13674 | 17544 | 22532 | 34400 | 33368 | 43786 | 62350 | 74992 | 97675 |
| kw | 8.1 | 13.5 | 16.9 | 24.9 | 28.1 | 35 | 12.5/13.85 | 17.2/18.95 | 22.75 | 87.2 | 113.58 | |
|
The refrigerant |
Name | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 |
|

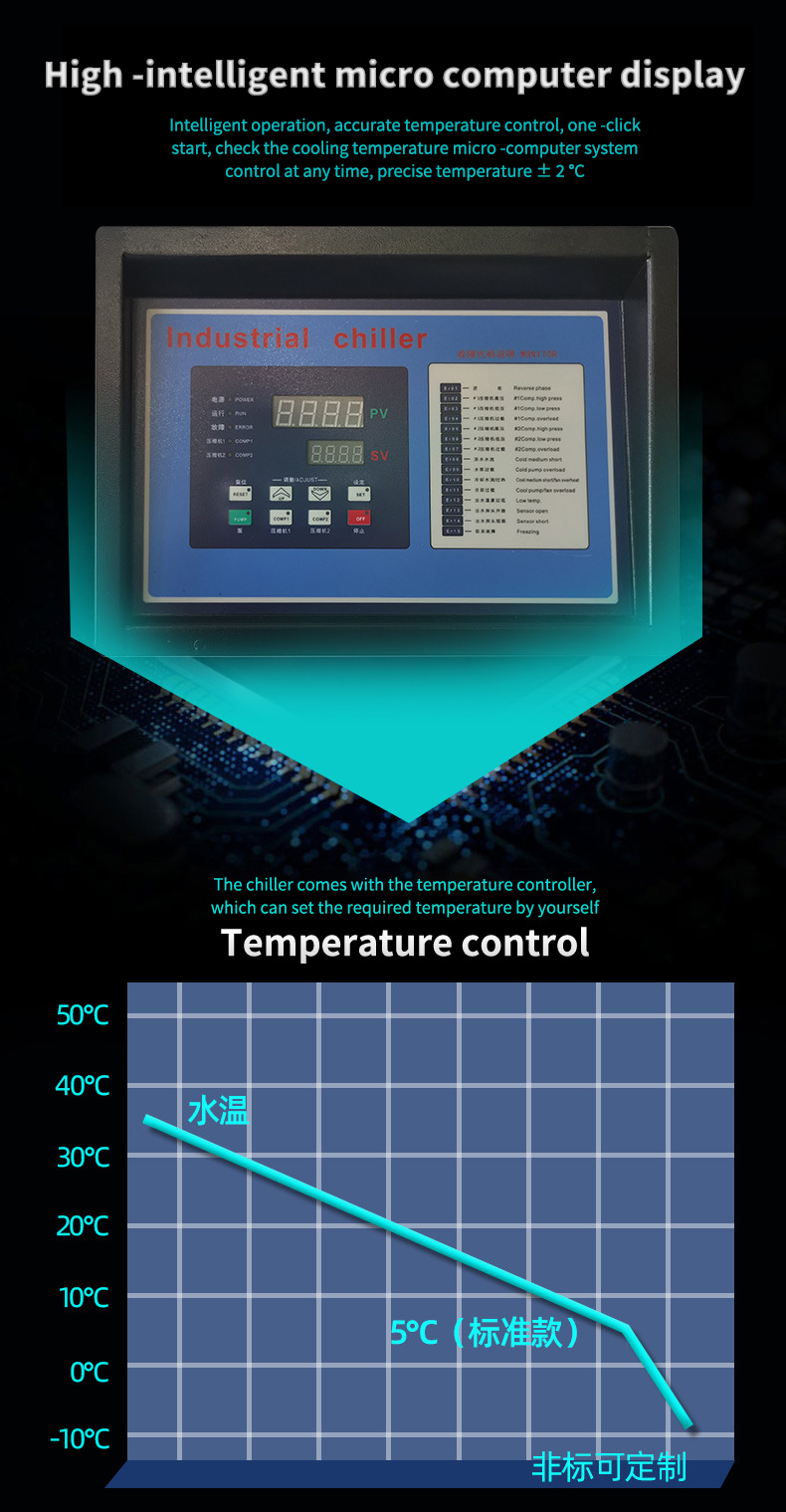

Control method |
Capillary | Expansion valve | Capillary | |||||||||
| Compressor | Type | Scroll or piston | ||||||||||
|
Power (HP) |
3 | 5 | 6 | 4HP*2 | 5HP*2 | 6HP*2 | 5HP*3 | 10HP*2 | 12.5HP*2 | 10HP*3 | 13.3HP*3 | |

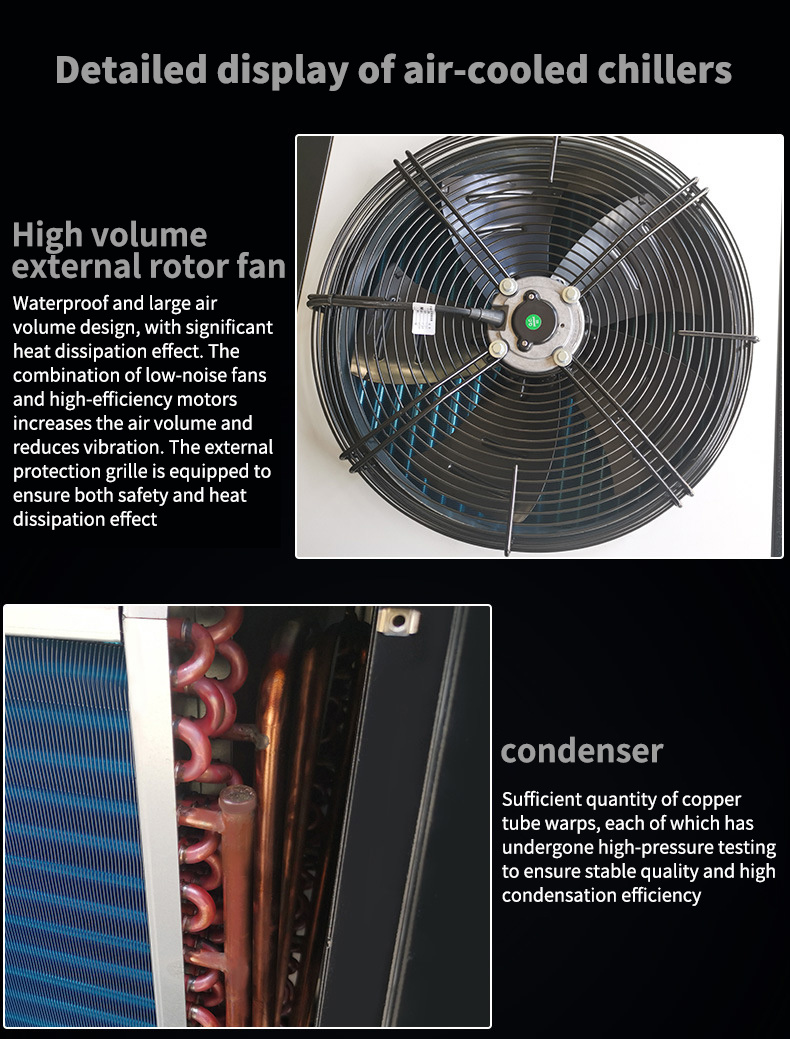

| Condenser | Type | Air-cooled finned high-efficiency heat exchanger | ||||||||||
|
Air volume (m3/h) |
3216 | 6570 | 6570 | 9800 | 9800 | 10000 | 17000 | 26640 | 26640 | 30000 | 11800 | |
|
Motor Power kw |
2.6/2.92 | 4.4/4.45 | 4.8/4.9 | 0.28*2 | 0.25*2 | 0.45*2 | 0.6*2 | 0.38*4 | 0.38*4 | 0.55*3 | 1.5*4 | |
|
Cooling ambient temperature |
≤ 45 ℃ | |||||||||||

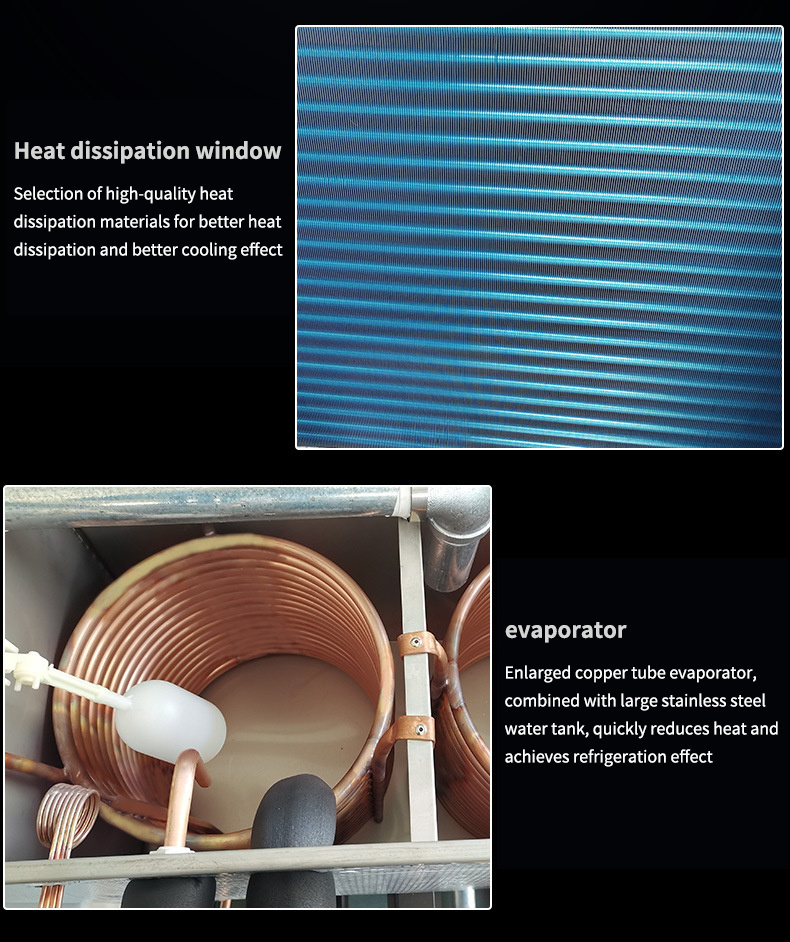

| Evaporator | Type | Water tank coil type | ||||||||||
|
Chilled water (L/H) |
29.8 | 100 | 100 | 200 | 200 | 200 | 220 | 256.5 | 251 | 360 | 650 | |
|

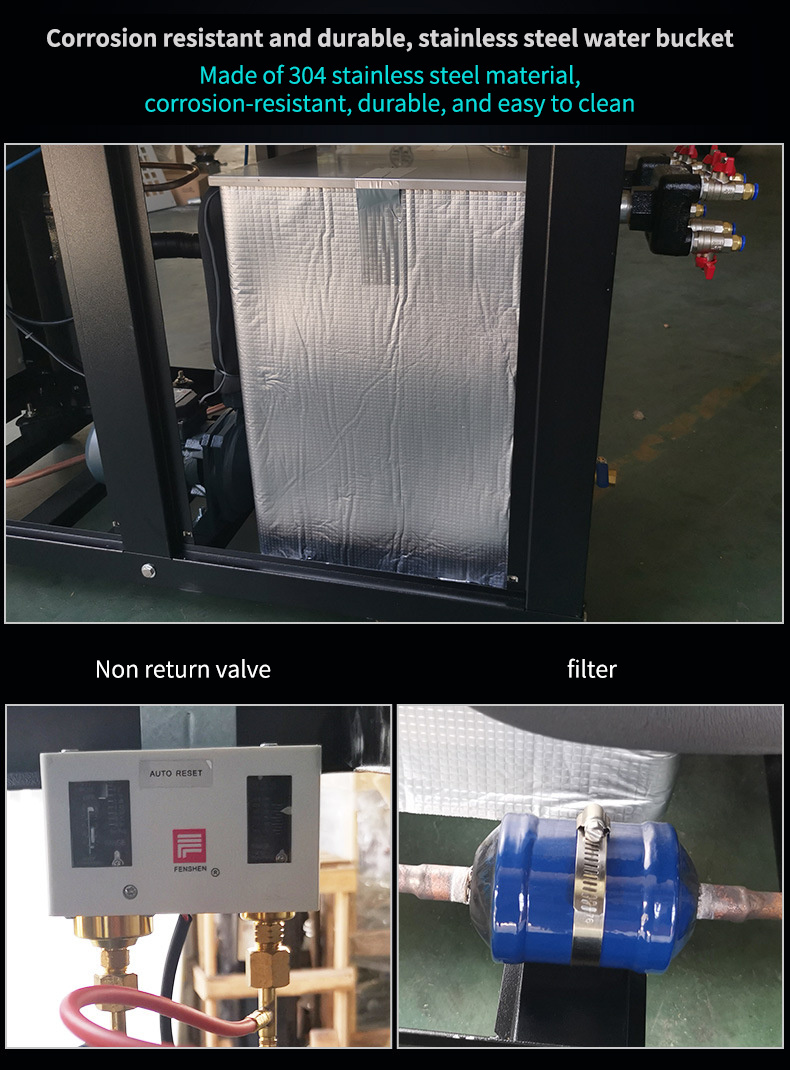

Water tank capacity (L) |
50 | 60 | 60 | 130 | 130 | 125 | 195 | 250/195 | 270 | 230 | 440 | |
|
Nozzle diameter (DN) |
25 | 25 | 25 | 1.5 | 1.5 | 1.5 | 50 | 65 | 65 | 2 | 2.5 | |
|

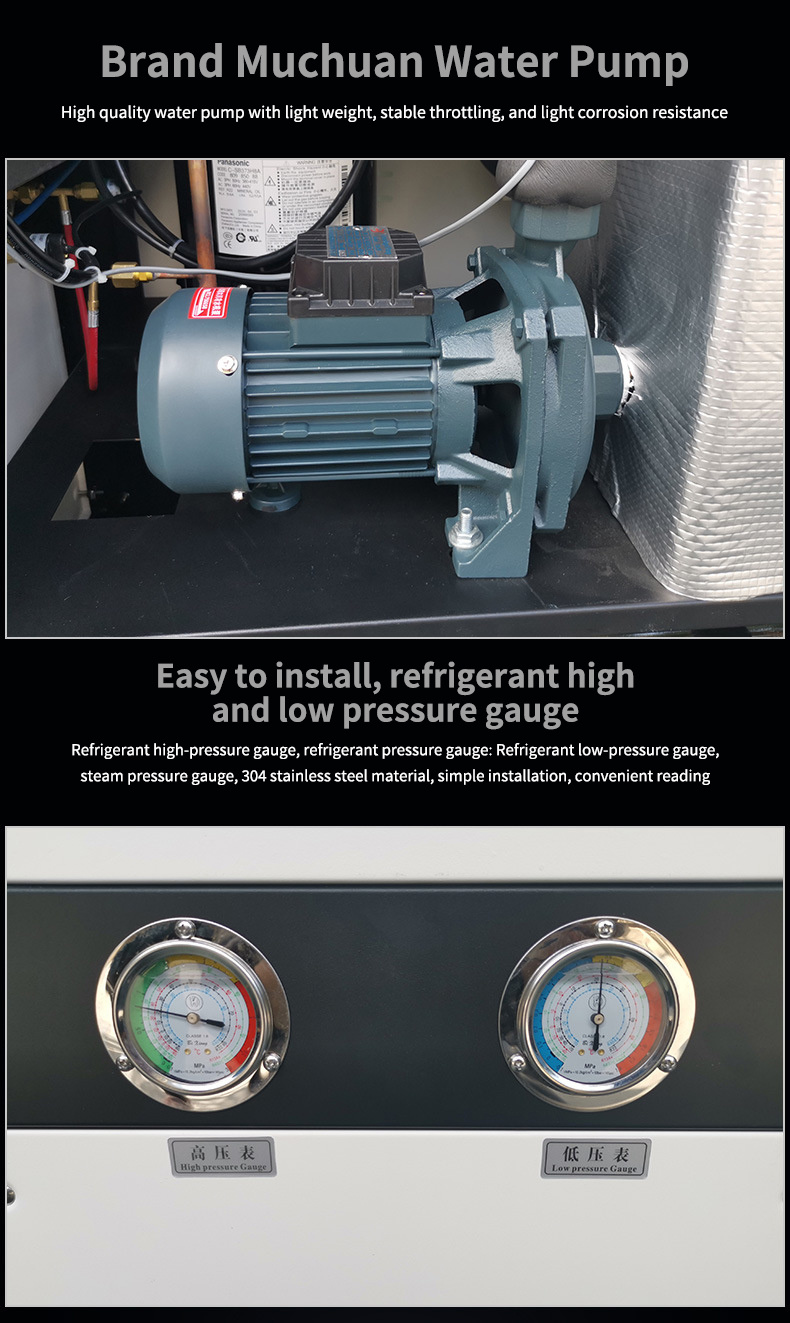

Water pump |
Power (HP) |
0.37 | 0.37 | 0.37 | 1 | 1 | 1 | 3 | 5 | 5 | 3 | 3 |
|
Head (m) |
15 | 15 | 15 | 18 | 18 | 18 | 18 | 19 | 19 | 23 | 23 | |
| Security | Panel |
Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection phase sequence/phase loss protection, exhaust overheating protection, automatic prompt system for cooling water not up to standard. |
||||||||||
|
High and low pressure |
||||||||||||
| Filter | ||||||||||||
|
Phase sequence dimension electrical appliances |
||||||||||||

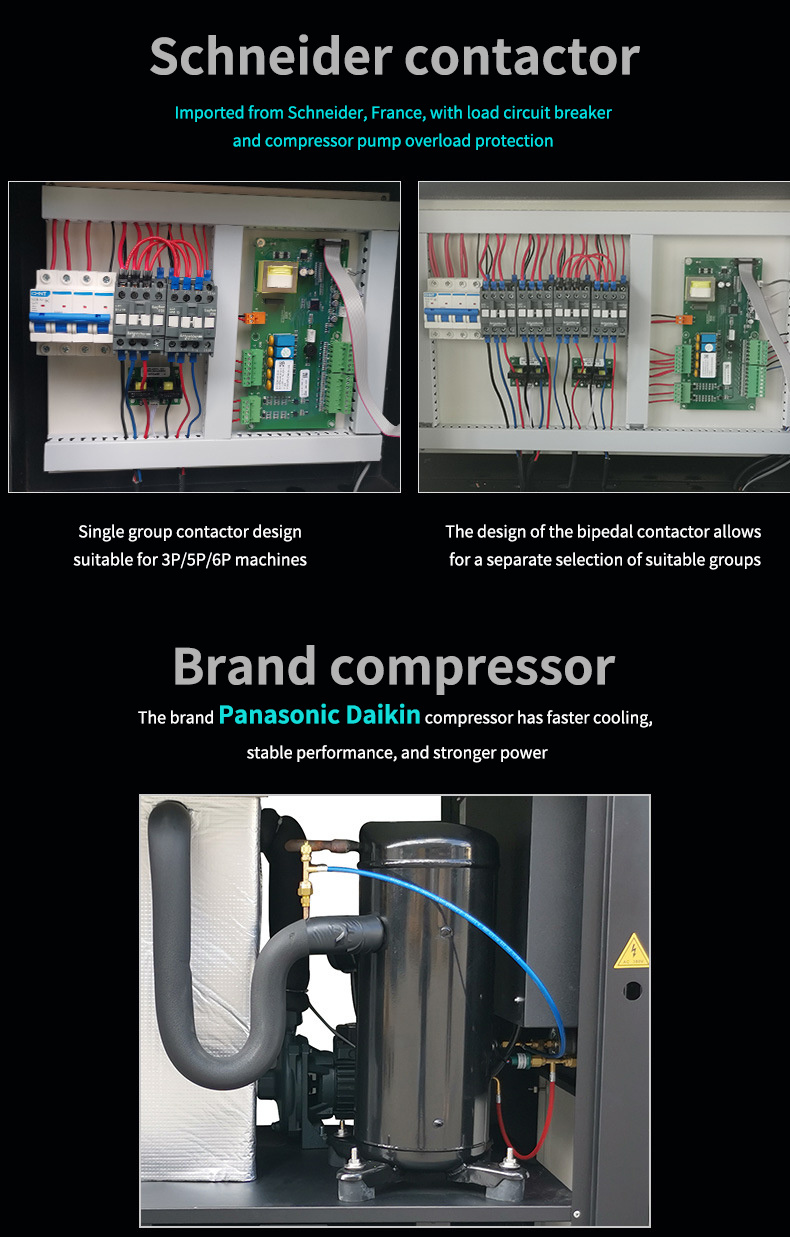

| Contactor | ||||||||||||
| Main switch | ||||||||||||
|

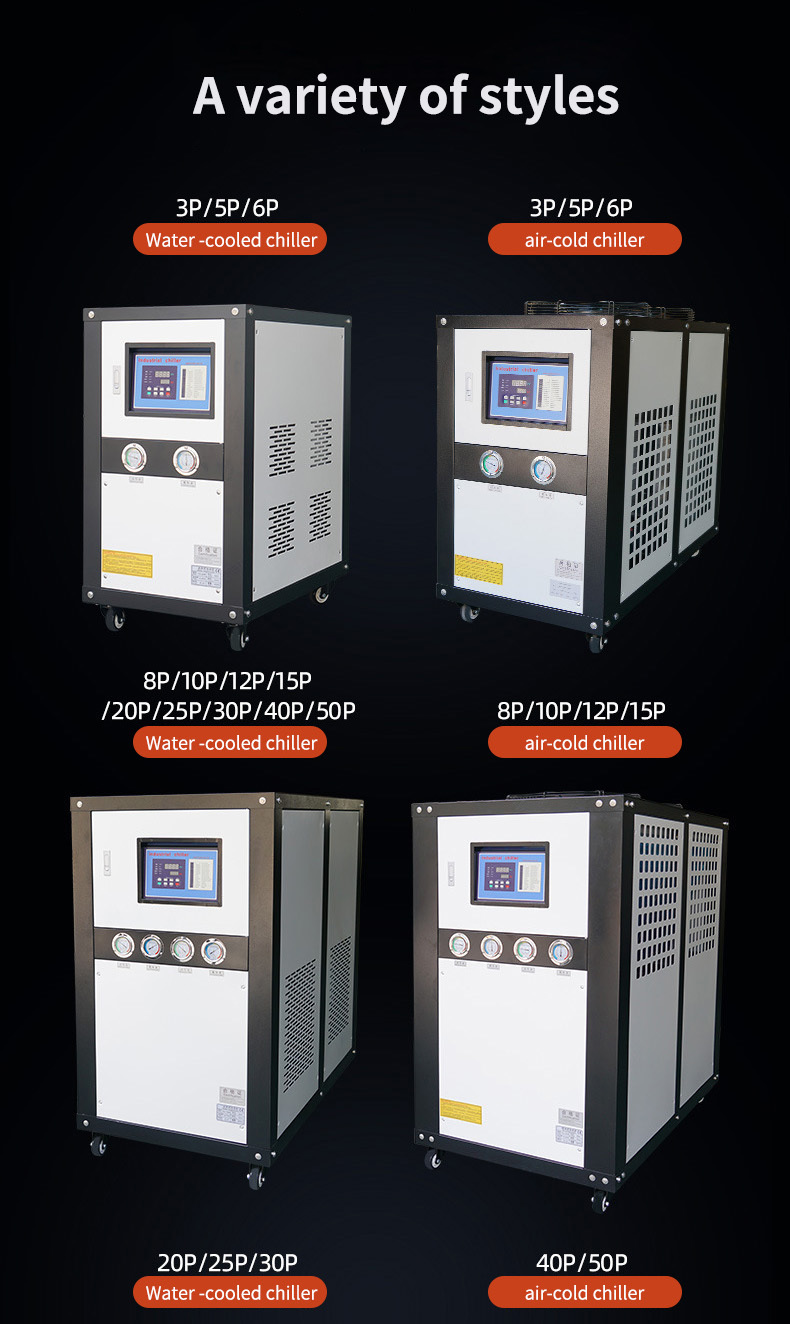

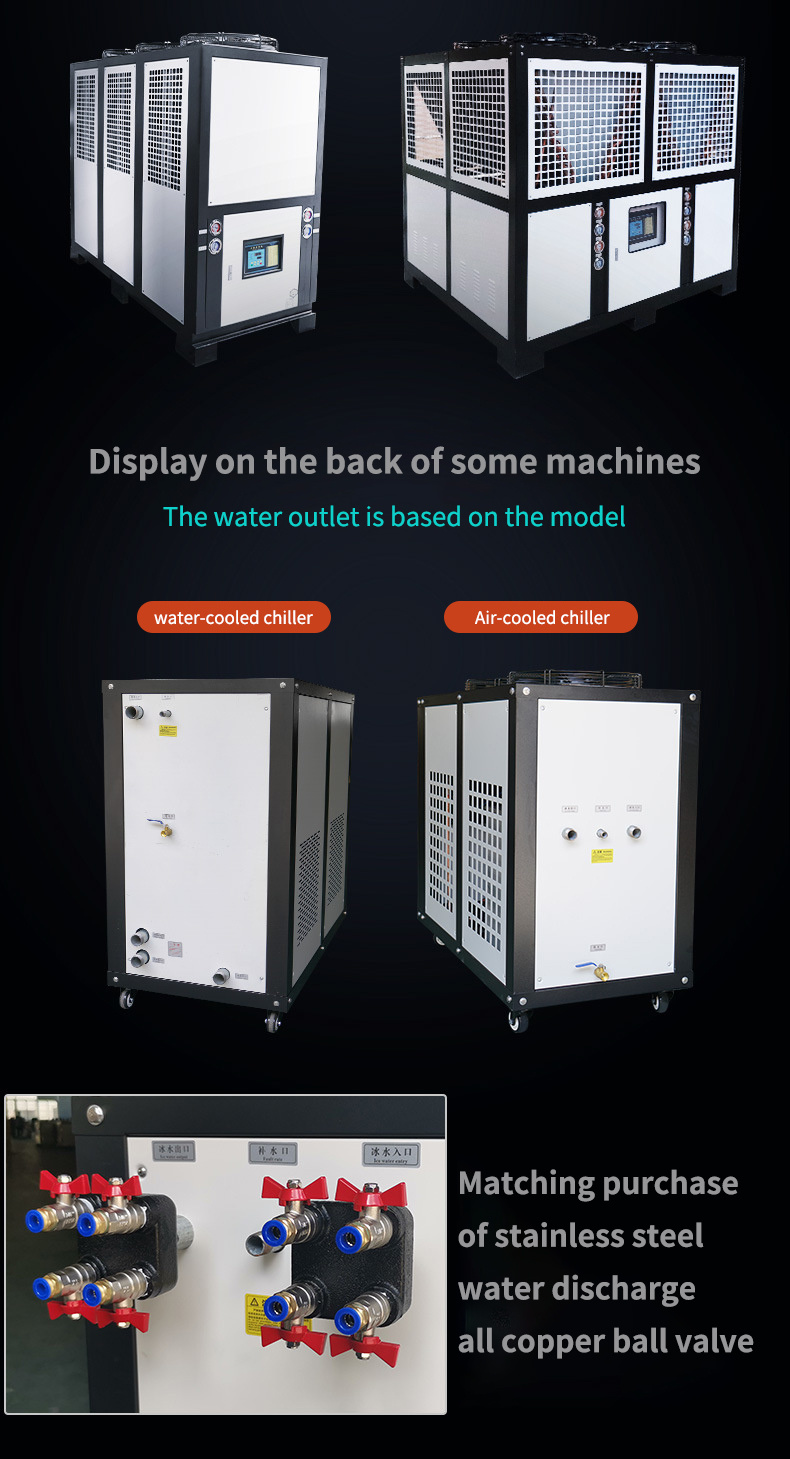

Machine description |
Air-cooled weight（kg） |
160 | 180 | 180 | 280 | 300 | 380 | 420 | 540 | 880 | 1000 | 1300 |
|
Air-cooled dimensions cm |
118*60*107 | 118*60*107 | 118*60*107 | 150*80*145 | 150*80*145 | 150*80*145 | 170*85*145 | 200*90*175 | 200*90*175 | 200*85*185 | 200*80*165 | |
|
Water cooling weight |
150 | 160 | 160 | 280 | 300 | 300 | 420 | 540 | 875 | 998 | 1300 | |
|
Water cooling dimensions （cm） |
87*55*100 | 87*55*100 | 87*55*100 | 134*73*130 | 134*73*130 | 134*73*130 | 150*68*140 | 170*78*158 | 170*78*158 | 170*78*158 | 180*70*160 | |
|
Surface treatment |
Main board 2mm, sealing board 1.5mm | |||||||||||
